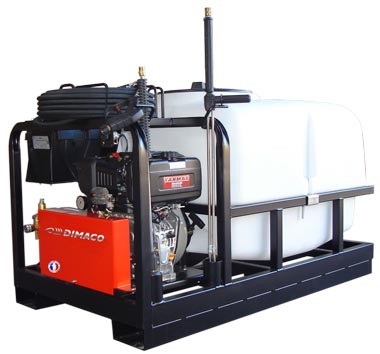

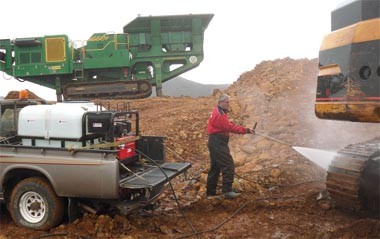

Stationary unit & Pickup

SPECIFICATIONS
  • Crankshaft pump (radial), 3 ceramic pistons
  • Regulator : separated from the manifold with pressure drop to zero
  • Diesel engine with pressure lubrication
  • V-Belt drive : flexible transmission of power
  • Electric or pull start
  • Board and housing : welded steel, epoxy paint
STANDARD EQUIPMENT

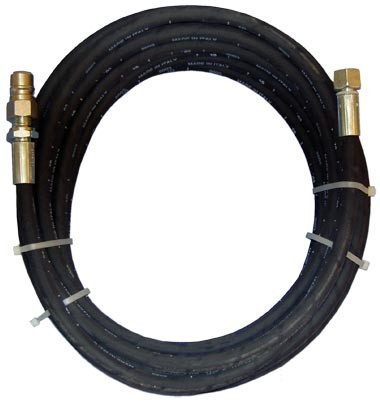

  • Hose : 3/8 double metal braided hose
    • JTD18500Y : 30 m
    • PICKUP15210YD : 20 m
  • Spray gun : with swivel link
  • Lance : 1050 mm double lance adjustable high & low pressure
Main features
  • Long-life pump
  • Anti water hammer regulator
  • V-belt drive
  • Anti-fatigue spray gun
  • Displacement by forklift truck
MODELS
REFERENCE FLOW RATE PRESSURE POWER PUMP Weight DATA SHEET
l/min l/h bar Engine HP rpm Brand Oil
PICKUP15210YD 15 900 210 YANMAR 10 1450 INTERPUMP 15W40 270
