Intensive Diesel HP washers

SPECIFICATIONS
  • Crankshaft pump (radial), 3 ceramic pistons
  • Regulator : separated from the manifold with pressure drop to zero
  • Integrated detergent application system
  • Reduction gear : reduces the pump rotation speed
  • Diesel engine
  • Pull start
  • Welded steel frame and hood, epoxy paint
STANDARD EQUIPMENT
  • Hose : 10 m 5/16 single metal braided hose
  • HP gun : with swivel link (on hose side)
  • Lance : 900 mm double lance adjustable high & low pressure
  • Quick coupling : on the outlet of the pump
  • Pneumatic wheels Ø 500 mm
Main features
  • Pump + reduction gear : longer lifetime
  • Anti water hammer regulator
  • Solid frame
MODELS
REFERENCE START FLOW RATE PRESSURE POWER PUMP WEIGHT DATA SHEET
l/min l/h bar Engine HP rpm Brand Oil kg

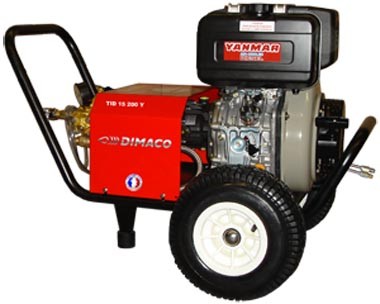

TID15200Y Pull start 15 900 200 YANMAR 10 1450 INTERPUMP 15W40 100
TID15200YD Electric 15 900 200 YANMAR 10 1450 INTERPUMP 15W40 100
