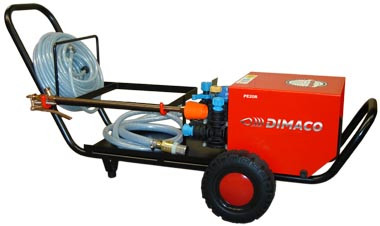

Electric sprayers

SPECIFICATIONS
  • Engine : 230 V 0.6 HP single phase electric engine
  • Pressure : 10 bar
  • Flow rate : 19 l/min
  • Crankshaft pump with Viton membrane and polypropylene manifold
  • Pump rotation speed : 300/650 rpm
  • Manual pressure regulator with pressure gauge                                       and recycling & rinse valve
  • Polypropylene detergent trap
  • Multi-user option : possibility to have                                                      two operators working together
STANDARD EQUIPMENT
  • Spray lance :
    • 600 mm with adjustable handle for PE20 ACCESS, PE20R et PE20 INOX
    • 900 mm for PE20 PREMIER
  • 25 m hose
  • 1.5 m suction hose with inlet filter
  • 1.5 m return hose
  • For all liquid products (except for products made from methylene chloride or cellulosic solvents)
  • Usable products : see data sheet
Main features
  • Place to fit the product can
  • Hose holder
  • Lance holder
MODELS
REFERENCE FLOW RATE PRESSURE POWER WEIGHT DATA SHEET DATA SHEET DATA SHEET DATA SHEET DATA SHEET DATA SHEET DATA SHEET
l/min bar HP kg
PE20ACCESS 22 10 0.6 38
PE20ACCESSED3 22 10 0.6 41
PE20ED3 22 10 0.6 42
PE20R 22 10 0.6 39
PE20ED3EP 19 10 0,6 49
PE20INOXED3 19 10 0.6 45
PE20PREMIER 19 10 0,6 25
